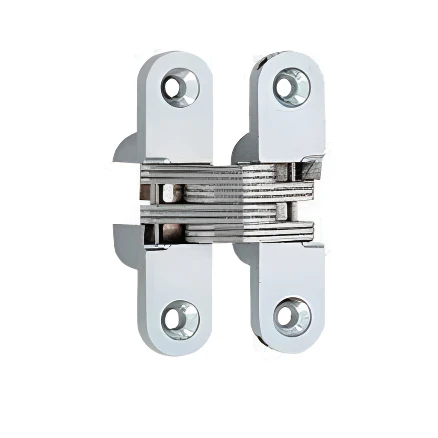

Concealed Hinge 70 x 16mm Satin Chrome (Min Door Thickness: 25mm)

Product image 1
1 / 4

Concealed Hinge 70 x 16mm Satin Chrome (Min Door Thickness: 25mm)

Concealed Mortice/Soss Door Hinge - Concealed door/flap hinge ideal for marine or caravan use - with multiple size (door weight) options available. Zinc alloy body with stainless steel components.






Specifications



  • Operating Angle: 180 Degree
  • Finish: Satin Chrome
  • Furniture Door/Flap Hinge
  • Sugatsune R Series

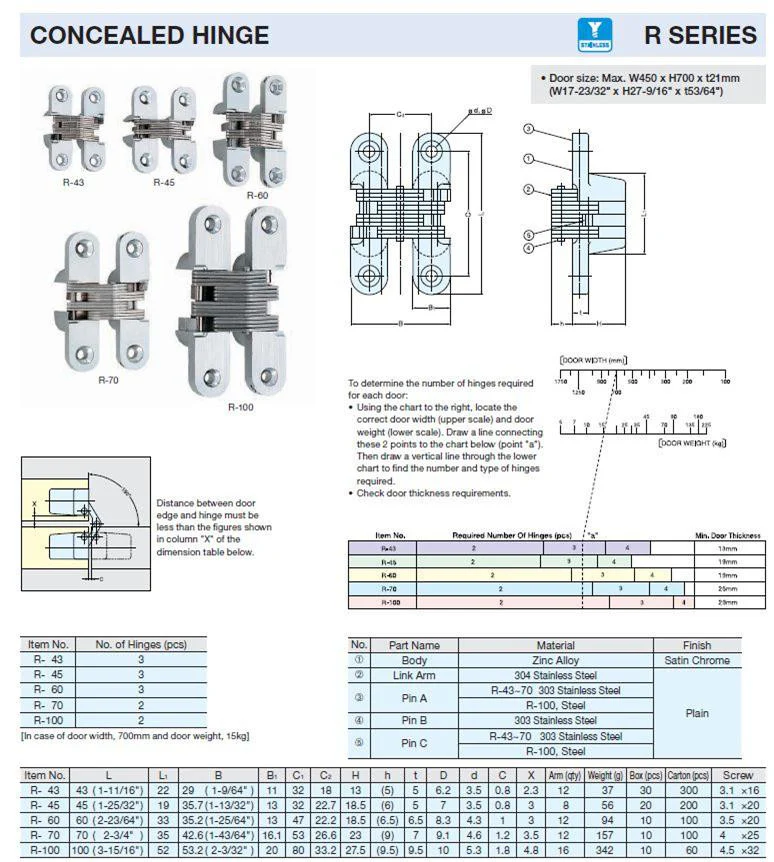

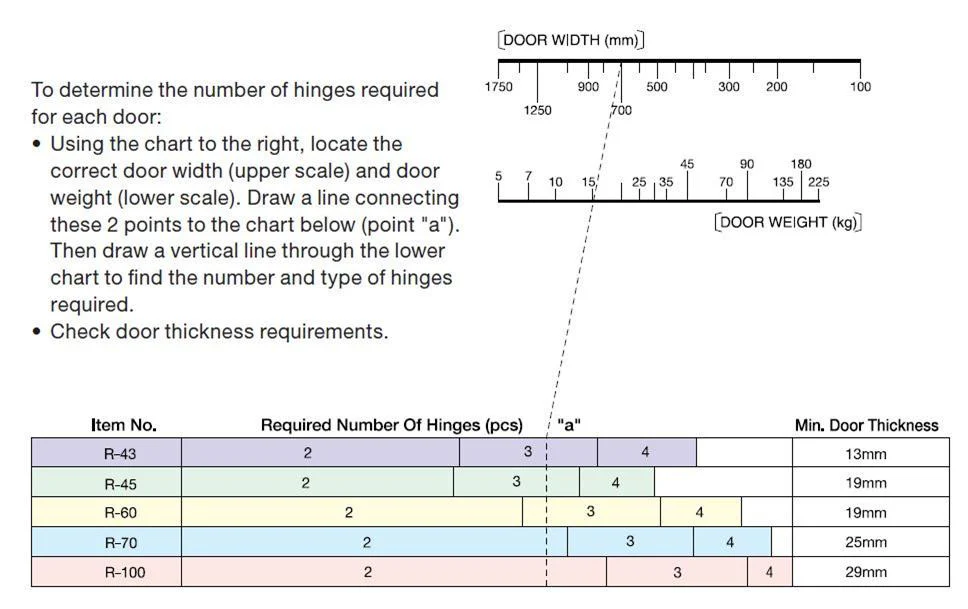

Sold individually (Please check the chart available on the spec sheet to determine number of hinges needed for your door)



Hinge Size Options Available

  • R-43 - 43mm Hinge (HF00008)
  • R-45 - 45mm Hinge (HF00072)
  • R-70 - 70mm Hinge (HF00073)
$43.11
Concealed Hinge 70 x 16mm Satin Chrome (Min Door Thickness: 25mm)—
$43.11

Product Information

Shipping & Returns

Description

Concealed Mortice/Soss Door Hinge - Concealed door/flap hinge ideal for marine or caravan use - with multiple size (door weight) options available. Zinc alloy body with stainless steel components.






Specifications



  • Operating Angle: 180 Degree
  • Finish: Satin Chrome
  • Furniture Door/Flap Hinge
  • Sugatsune R Series



Sold individually (Please check the chart available on the spec sheet to determine number of hinges needed for your door)



Hinge Size Options Available

  • R-43 - 43mm Hinge (HF00008)
  • R-45 - 45mm Hinge (HF00072)
  • R-70 - 70mm Hinge (HF00073)
